CENTER DISPLAY [WITH CENTER DISPLAY]
Purpose
The center display displays entertainment system and vehicle information.
Function
The center display displays video images based on the signal sent by the LVDS*1 signal from the connectivity master unit (CMU).
The center display is touch-type LCD. The display touch position information is sent by LVDS*1 signal to the CMU.
The LVDS communication pathway between the CMU and the center display corresponds to HDCP*2.
- *1
- Low-Voltage Differential Signaling indicates the electrical characteristics of the signal. LVDS is a digital, wired transmission technology for the short range which adopts a differential interface having the characteristics of low voltage and low power consumption.
- *2
- HDCP (High-bandwidth Digital Content Protection system) is a copyright protection technology which prevents content from being copied fraudulently. The pathway in a display device such as a display, which sends/receives digital signals from a video playback device such as a computer, is encrypted.
Temperature detection function
The center display detects temperature using a temperature sensor.
The center display converts the temperature detected by the temperature sensor to an electrical signal (LVDS signal) and sends it to the CMU.
NOTE:

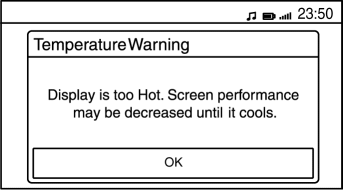

If the center display receives a temperature warning pop-up screen display request signal (LVDS signal) from the CMU, it displays the temperature warning pop-up screen on the LCD.
Display information
The information displayed by the center display is as follows: Refer to the referenced section for details of the displayed information.
| Display content |
Reference |
| Home screen |
(See Home screen.) |
| Application screen |
(See Applications screen.) |
| Entertainment screen |
(See Entertainment screen.) |
| Communication screen |
(See Communication screen.) |
| Navigation screen |
(See Navigation screen.) |
| Setting screen |
(See Settings screen.) |

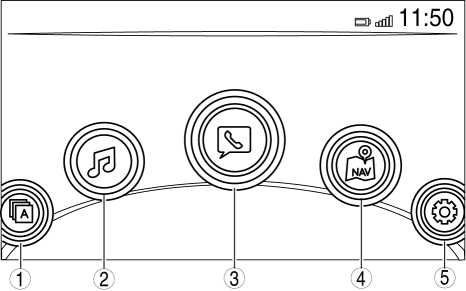

Home screen
The home screen displays entertainment system information.
When the ignition is switched to ACC or ON (engine off or on), the home screen is displayed in the center display.
| Display area |
Button name |
| 1 |
Applications |
| 2 |
Entertainment |
| 3 |
Communication |
| 4 |
Navigation*3 |
| 5 |
Settings |
- *3
- With car-navigation system

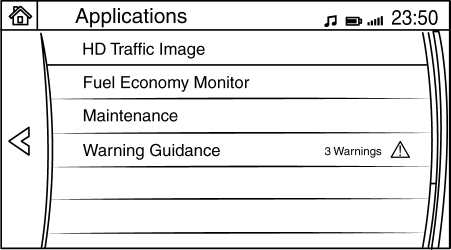

Applications screen
Information concerning fuel economy, maintenance, and warnings can be verified.
| Display content |
Reference |
| HD Traffic Image |
??? |
| Fuel Economy Monitor |
(See Fuel Economy Monitor.) |
| Maintenance |
|
| Warning Guidance |
(See Warning guidance.) |
Fuel Economy Monitor
Displays the fuel economy information.
Fuel economy monitor verification procedure
Select the ???Applications??? button on the Home screen.
Select [Fuel Economy Monitor] on the Applications screen to display the warning guidance.

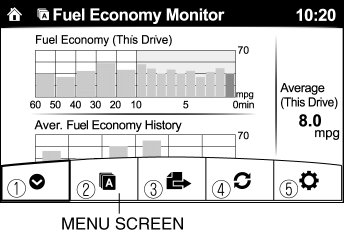

The buttons on the menu screen operate as follows:
| Display |
Content |
|
| |
1 |
Switches the menu screen to non-display. |
| 2 |
Displays the application menu screen. |
|
| 3 |
|
|
| 4 |
Resets the fuel economy data. |
|
| 5 |
|
|

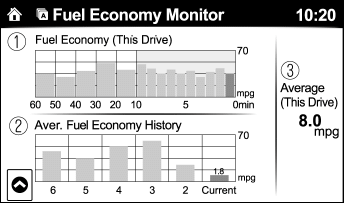

Fuel Consumption
The information regarding the fuel economy is displayed.
| Display |
Content |
Reference |
|
| |
1 |
|
??? |
| 2 |
Displays the average fuel economy over the past 5 resets and after the current reset. |
||
| 3 |
|
||
Warning guidance
When the center display receives a warning guidance display signal (LVDS signal) from the CMU, it displays the warning guidance screen.
NOTE:
Display method of the warning guidance varies depending on the emergency level.

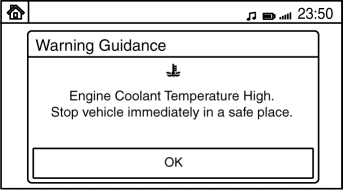

Pop-up display
Warning message of a higher emergency level is displayed on the pop-up screen at the time the warning occurred regardless of the display content of the center display. When ???OK??? on the pop-up screen is selected, it switches to the previous screen before the pop-up display. The pop-up display warning can also be verified in the warning guidance list.
List display
Warning messages displayed by methods other than pop-up display can be verified in the warning guidance screen.
Warning guidance verification procedure
Select the [Applications] button on the Home screen.

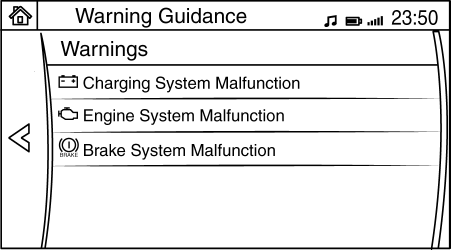

Select [Warning Guidance] on the Applications screen to display the warning guidance.
Select a desired warning from the warning guidance screen.
NOTE:
Pop-up display
If there is no warning, No Warnings found is displayed on the warning guidance screen.
| Screen display |
Send module |
Reference |
||

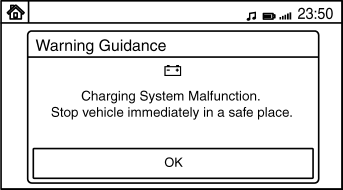

| Pop-up screen |
List display |
|||
| Title |
Message |
|||
| |
Charging System Malfunction |
There is an error in the charging system Stop car immediately in a safe place, and contact a Mazda dealer. |
PCM |
|
| |
Engine Coolant Temperature High (On) |
Engine Coolant Temperature High. Stop vehicle immediately in a safe place. |
Instrument cluster |
|
| |
???*4 |
???*4 |
CMU/center display |
??? |
- *4
- Because the temperature warning is not displayed in the list, it cannot be verified using the list.
| Screen display |
Send module |
Reference |
||
| Warning light |
Title |
Message |
||
| |
Low Engine Oil Pressure |
Low engine oil pressure. Stop the vehicle immediately in a safe place, turn off the engine, and inspect the engine oil level. Add oil if necessary. Have the vehicle checked by a dealer immediately if this indicator turns on after adding oil or the engine oil level is OK. |
PCM |
|
| |
Low Brake Fluid |
Brake fluid level is low. Stop the vehicle immediately in a safe place and have the vehicle checked by a dealer. |
Body control module (BCM) |
(See BRAKE WARNING LIGHT/ABS WARNING LIGHT/ELECTRIC VACUUM PUMP WARNING LIGHT.) |
| |
Brake System Malfunction |
Electronically-controlled brake system malfunction. Stop the vehicle immediately in a safe place and have the vehicle checked by a dealer. |
DSC HU/CM |
|
| |
Low Tire Air Pressure (On) |
Low tire air pressure in one or more tires. Check the air pressure of the tires and adjust to the correct air pressure. Press the TPMS SET switch after adjusting the tire pressure until you hear a beep. |
DSC HU/CM |
|
| |
Engine Coolant Temperature High |
Engine is starting to run hot. Drive slowly or stop the vehicle until the indicator stops flashing. If it keeps flashing, even after stopping the vehicle, take proper actions. Refer to the Owner's Manual. |
Instrument cluster |
|
| |
Low Fuel |
Fuel tank level is low. Refuel the vehicle soon. |
Instrument cluster |
(See LOW FUEL WARNING LIGHT.) |
| |
Power Steering System Malfunction |
Electric power steering malfunction. Stop the vehicle in a safe place and turn off the engine. Have the vehicle checked by a dealer if this indicator stays on. |
EPS control module |
|
| |
Engine System Malfunction |
Engine system malfunction. Have the vehicle checked by a dealer immediately. |
PCM |
|
| |
Airbag System/Pretensioner System Malfunction |
Airbag/seatbelt malfunction. Have the vehicle checked by a dealer immediately |
SAS control module |
(See AIR BAG/SEAT BELT PRE-TENSIONER SYSTEM WARNING LIGHT [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG/SEAT BELT PRE-TENSIONER SYSTEM WARNING LIGHT [STANDARD DEPLOYMENT CONTROL SYSTEM].) |
| |
ABS Malfunction |
Anti-lock brake system (ABS) malfunction. Have the vehicle checked by a dealer immediately. |
DSC HU/CM |
(See BRAKE WARNING LIGHT/ABS WARNING LIGHT/ELECTRIC VACUUM PUMP WARNING LIGHT.) |
| |
DSC Malfunction |
Dynamic stability control (DSC) or traction control system (TCS) malfunction. Have the vehicle checked by a dealer immediately. |
DSC HU/CM |
(See TCS/DSC INDICATOR LIGHT.) |
| |
BSM Malfunction |
Blind spot monitoring (BSM)/Rear cross traffic alert (RCTA) malfunction. Check for abnormalities in the rear bumper surface and clean if dirty or covered with snow. Have the vehicle checked by a dealer if this indicator stays on. |
Blind spot monitoring (BSM) control module |
|
| |
AFS Malfunction |
Adaptive front-lighting system (AFS) malfunction. Have the vehicle checked by a dealer if this indicator keeps flashing. |
AFS control module |
|
| |
TPMS System Malfunction |
Tire pressure monitoring system (TPMS) malfunction. Have the vehicle checked by a dealer. |
DSC HU/CM |
|
| |
Key Battery Low |
Key battery is low. Replace the key battery immediately. |
Start stop unit |
|
| |
Keyless Entry Malfunction |
Keyless entry system malfunction. Have the vehicle checked by a dealer. |
Start stop unit |
|
| |
Fuel Cap Inspection |
The fuel cap may not be installed properly. Check that the fuel cap has been installed and tightened properly. After installing and tightening the fuel cap properly, this indicator will not turn off for a few drive cycles until it can be confirmed that the system is OK. Have the vehicle checked by a dealer if this indicator stays on. |
PCM |
|
| |
Head lamp System Malfunction |
Headlight system malfunction. Have your vehicle checked at a Mazda dealer. |
Auto leveling control module/AFS control module |
(See LED HEADLIGHT WARNING LIGHT.) |
| |
Automatic Transmission Malfunction |
Automatic transmission malfunction. Damage to the vehicle may occur if you continue to drive. Have the vehicle checked by a dealer immediately. |
TCM |
|
| |
Battery Management System Malfunction |
Battery management system malfunction. Have the vehicle checked by a dealer. |
PCM |
(See MASTER WARNING LIGHT.) |
| |
Brake Override System Malfunction |
Brake switch malfunction. Have the vehicle checked by a dealer immediately. |
PCM |
|
| |
LDWS Malfunction |
Lane departure warning system (LDWS) Malfunction. Have the vehicle checked by a dealer. |
FSC |
(See LDWS WARNING LIGHT.) |
| |
HBC Malfunction |
High beam control (HBC) malfunction. Have the vehicle checked by a dealer. |
FSC |
(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).) |
| |
HBC/LDWS Camera Malfunction |
High Beam Control (HBC)/Lane departure warning system (LDWS) Malfunction. Clean the Windshield. Have the vehicle checked by a dealer if this Indicator stays On. |
FSC |
(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).) (See LDWS WARNING LIGHT.) |
| |
||||
| |
HBC/LDWS System Malfunction |
High Beam Control (HBC)/Lane departure warning system (LDWS) Malfunction. Clean the Windshield. Have the vehicle checked by a dealer if this Indicator stays On. |
FSC |
(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).) (See LDWS WARNING LIGHT.) |
| |
||||
| |
HBC/LDWS System Malfunction |
High beam control (HBC)/Lane departure warning system (LDWS) malfunction. Defrost the windshield. Have the vehicle checked by a dealer if this indicator stays on. |
FSC |
(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).) (See LDWS WARNING LIGHT.) |
| |
||||
| |
Vehicle System Malfunction |
Vehicle system malfunction. Have the vehicle checked by a dealer. |
PCM |
(See MASTER WARNING LIGHT.) |
| |
Low Washer Fluid |
Washer fluid level is low. Refill the washer fluid. |
Body control module (BCM) |
(See WASHER FLUID-LEVEL SENSOR.) |
| |
Engine Coolant Temperature Low |
Engine coolant is cold and no warm air is available for heater/defroster. Vehicle can be driven with the indicator on or off. Have the vehicle checked by a dealer if this indicator stays on. |
Instrument cluster |
|
Entertainment screen

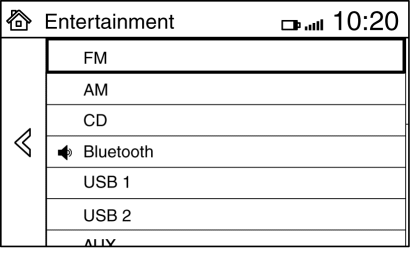

When the entertainment button on the home screen is selected, the entertainment screen is displayed. The following audio functions in the table below are available.
| Display content |
Function |
| Traffic Information |
If a particular equipment item is not available, the item is not indicated in the center display. |
| FM |
Switches to FM radio screen. |
| AM |
Switches to AM radio screen. |
| XM |
Switches to SiriusXM satellite radio screen. |
| Pandora® Radio |
Switches to Pandora® screen. NOTE:
|
| Stitcher??? |
Switches to Stitcher???. NOTE:
|
| Aha??? Radio |
Switches to Aha??? radio screen. NOTE:
|
| Bluetooth®<Device Name> |
Switches to Bluetooth® audio screen. NOTE:
|
| USB1<Device Name> |
Switches to USB audio screen. NOTE:
|
| USB2<Device Name> |
Switches to USB audio screen. NOTE:
|
| CD |
Switches to CD screen. |
| AUX |
Switches to AUX screen. |
NOTE:
Items requiring media, such as CDs or AUX, are displayed in gray and not available if connection of the media cannot be detected.

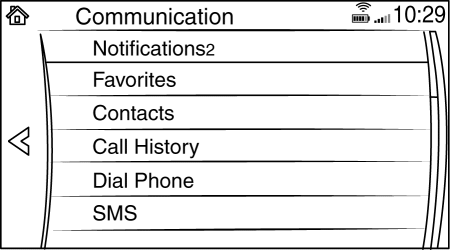

Communication screen
SMS (Short Message Service), and Hands-free telephone (HF/TEL) functions can be used.
| Display content |
Function |
| Active Call |
Switches to the incoming call screen. (when receiving an incoming call) |
| Notifications |
Switches to the notification screen. NOTE:
|
| Favorites |
Switches to the favorite screen. |
| Contacts |
Displays the phone book. |
| Call History |
Displays the call history. |
| Dial Phoned |
Switches to the dial screen for phone number input. |
| SMS |
Switches to the SMS screen. |
| Setting |
Switches ON/OFF of the SMS notification function. |
NOTE:
If Bluetooth® communication is not established between a mobile device such as a Bluetooth®-enabled smart phone, the functions dependent on the mobile device are displayed in gray and they are not available.
IF there any unread notification or SMS, the number of unread messages is displayed beside each item name. The number of missed call is displayed next to ???Call History???.
Navigation screen
When the navigation button on the home screen is selected, the navigation screen is displayed. Navigation information such as the current position and route guidance to destination is displayed on this screen.

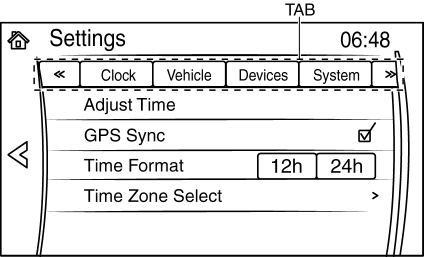

Settings screen
The following settings can be changed. For details, refer to the [ENTERTAINMENT SYSTEM] setting function. (See ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY].)
| Tab |
Reference |
|
| Display |
Display setting |
|
| Safety |
Personalization setting function (vehicle setting) |
|
| Sound |
Sound setting |
|
| Clock |
Clock setting |
|
| Vehicle |
Personalization setting function (vehicle setting) |
|
| Devices |
Bluetooth® pairing |
|
| System |
System setting |
|
Construction

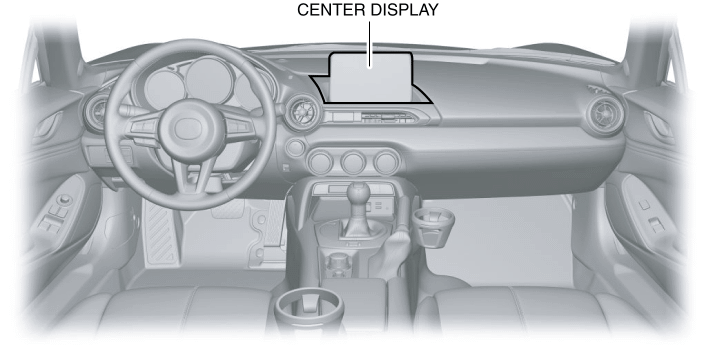

The center display is installed in the center of the dashboard.
The center display has a built-in temperature sensor.
Input/output signal table
| Terminal |
Signal |
|
| |
1A |
??? |
| 1B |
Ground |
|
| 1C |
??? |
|
| 1D |
??? |
|
| 1E |
??? |
|
| 1F |
??? |
|
| 1G |
ACC |
|
| 1H |
B+ |
|
| |
2A |
??? |
| 2B |
LVDS (+) |
|
| 2C |
??? |
|
| 2D |
LVDS (-) |
|
Fail-safe
