HVAC BASIC SYSTEM LOCATION INDEX

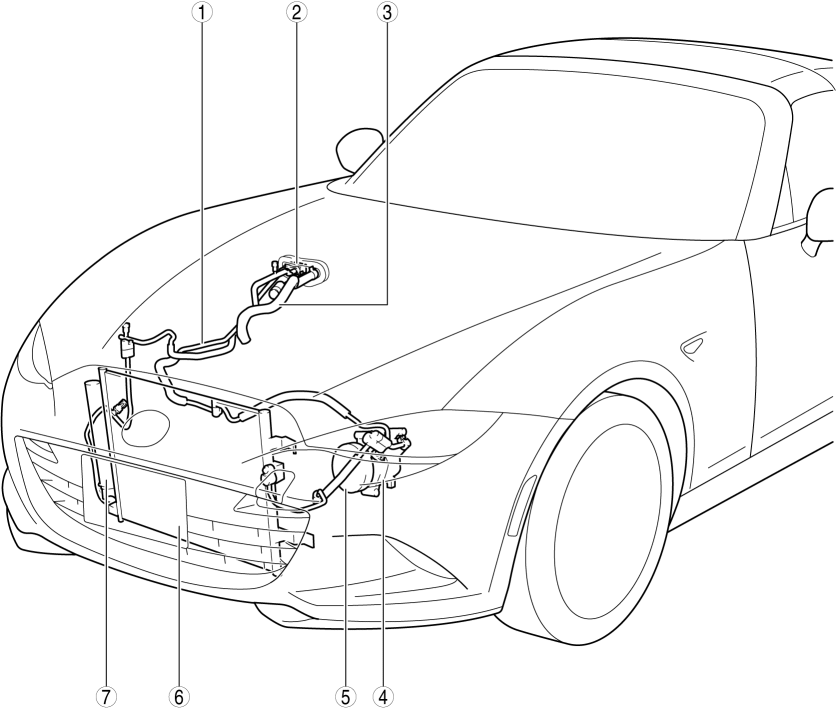

1

Refrigerant line

(See REFRIGERANT LINE REMOVAL/INSTALLATION.)

2

Expansion valve

(See EXPANSION VALVE REMOVAL/INSTALLATION.)

3

Heater hose

(See HEATER HOSE REMOVAL/INSTALLATION.)

4

A/C compressor

(See A/C COMPRESSOR REMOVAL/INSTALLATION.)

5

Magnetic clutch

(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY.)

(See MAGNETIC CLUTCH ADJUSTMENT.)

(See MAGNETIC CLUTCH INSPECTION.)

6

Condenser

(See CONDENSER REMOVAL/INSTALLATION.)

(See CONDENSER INSPECTION.)

7

Receiver/Drier

(See RECEIVER/DRIER REMOVAL/INSTALLATION.)

8

Cooling duct

(See COOLING DUCT REMOVAL/INSTALLATION.)

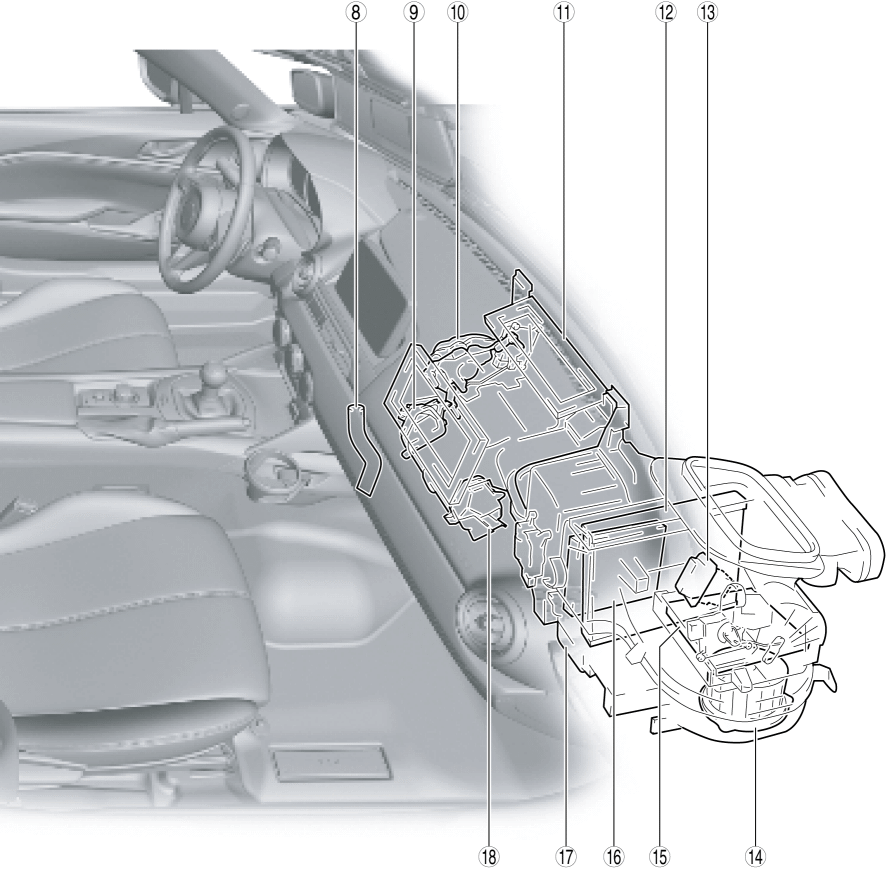

9

Heat duct (LH)

(See HEAT DUCT REMOVAL/INSTALLATION.)

10

Airflow mode main link

(See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION.)

11

Air dist unit

(See AIR DIST UNIT REMOVAL/INSTALLATION.)

(See AIR DIST UNIT DISASSEMBLY/ASSEMBLY.)

12

Evaporator

(See EVAPORATOR INSPECTION.)

13

Blower fan controller

(See BLOWER FAN CONTROLLER REMOVAL/INSTALLATION.)

(See BLOWER FAN CONTROLLER INSPECTION.)

14

Blower motor

(See BLOWER MOTOR REMOVAL/INSTALLATION.)

(See BLOWER MOTOR INSPECTION.)

15

Dust filter

(See DUST FILTER REMOVAL/INSTALLATION.)

(See DUST FILTER INSPECTION.)

16

Heater core

(See HEATER CORE INSPECTION.)

17

A/C unit

(See A/C UNIT REMOVAL/INSTALLATION.)

(See A/C UNIT DISASSEMBLY/ASSEMBLY.)

18

Heat duct (RH)

(See HEAT DUCT REMOVAL/INSTALLATION.)
