HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER]

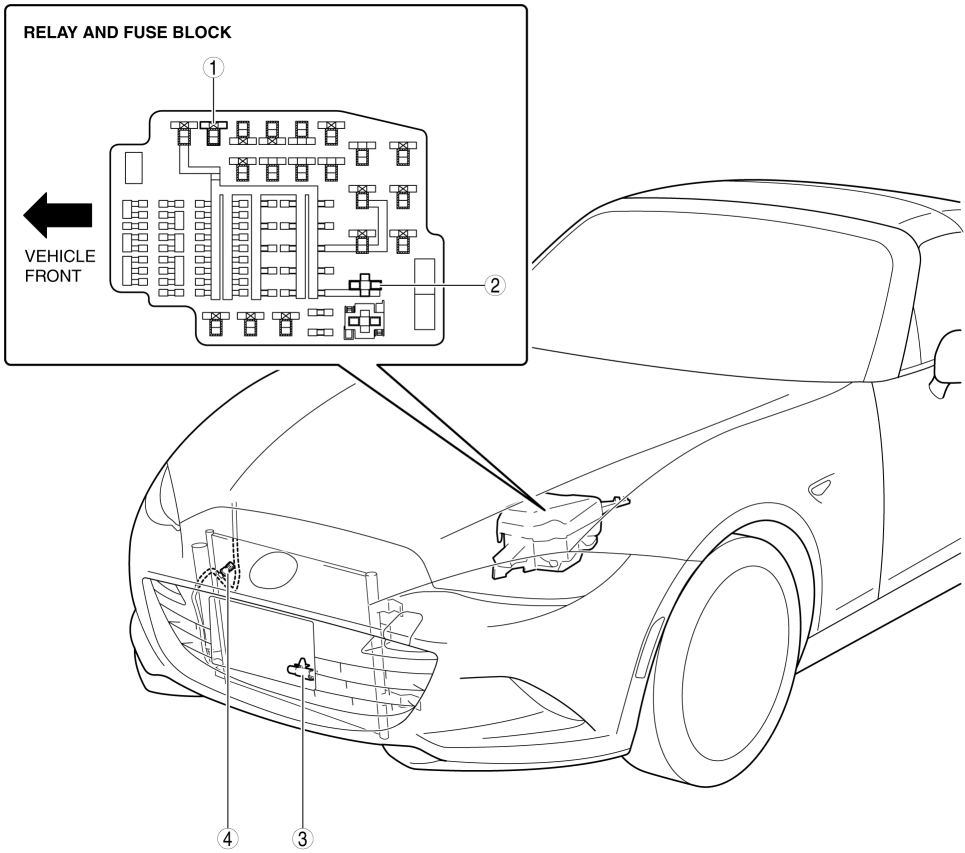

1

A/C relay

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

2

Blower relay

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

3

Ambient temperature sensor

(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

4

Refrigerant pressure sensor

(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

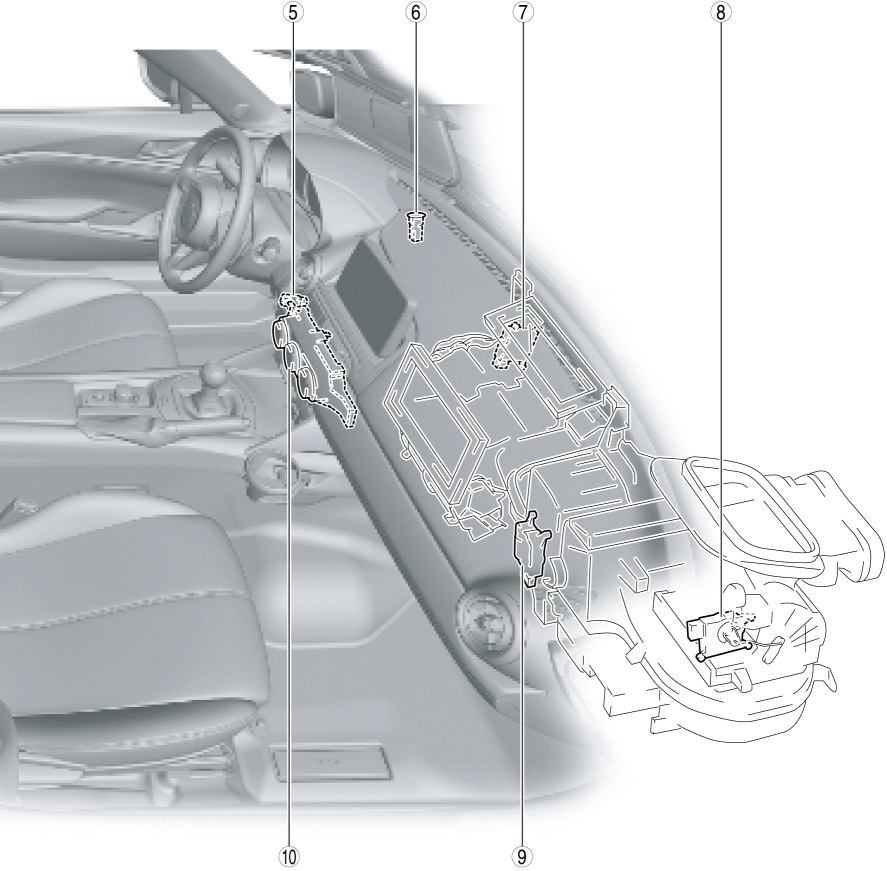

5

Passenger compartment temperature sensor

(See PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See PASSENGER COMPARTMENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

6

Solar radiation sensor

(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

7

Airflow mode actuator

(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

8

Air intake actuator

(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

9

Air mix actuator

(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

10

Climate control unit

(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
