HVAC CONTROL SYSTEM LOCATION INDEX [MANUAL AIR CONDITIONER]

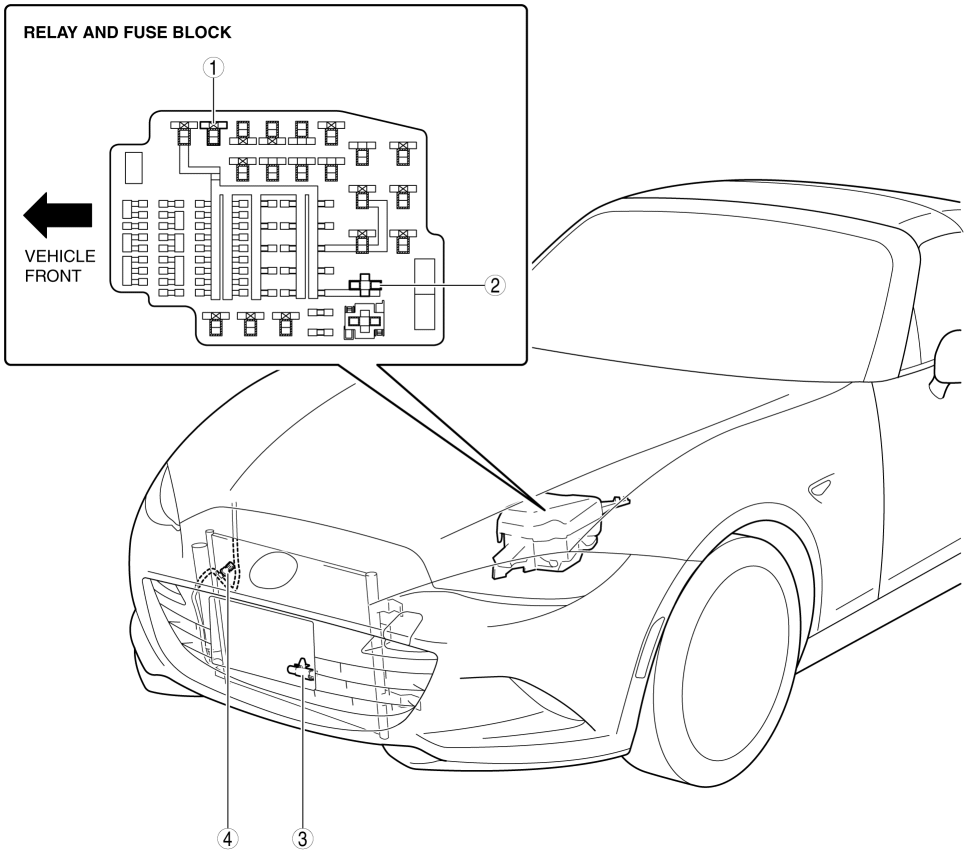

1

A/C relay

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

2

Blower relay

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

3

Ambient temperature sensor

(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(See AMBIENT TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)

4

Refrigerant pressure sensor

(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(See REFRIGERANT PRESSURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)

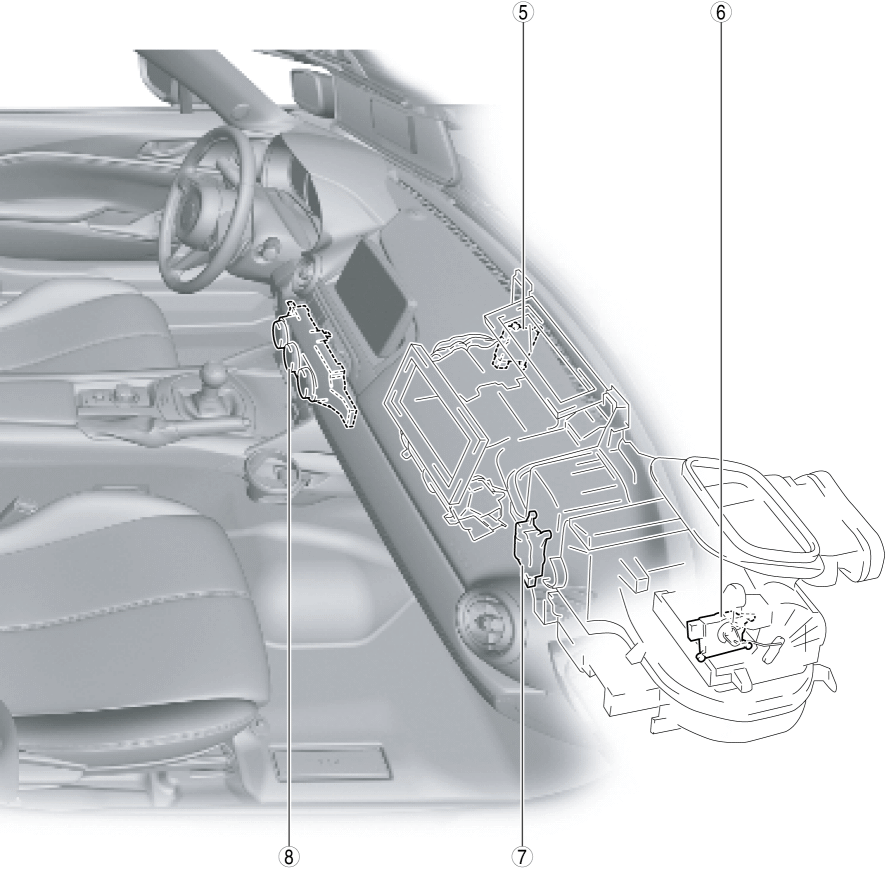

5

Airflow mode actuator

(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(See AIRFLOW MODE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER].)

6

Air intake actuator

(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(See AIR INTAKE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER].)

7

Air mix actuator

(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(See AIR MIX ACTUATOR INSPECTION [MANUAL AIR CONDITIONER].)

8

Climate control unit

(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER].)
