DTC B1079:13 [BCM]

Description	Hood latch switch circuit malfunction
Detection condition	BCM detects an open circuit in hood latch switch circuit with the ignition switched ON (engine off or on).
Fail-safe	Not applicable

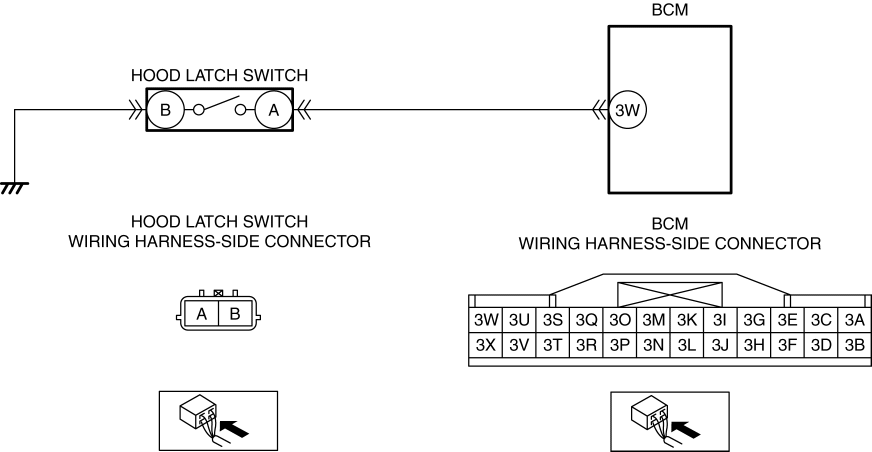

Possible cause	Hood latch switch connector or terminal malfunction Open circuit in wiring harness between hood latch switch terminal B and body ground Hood latch switch malfunction BCM connector or terminal malfunction Open circuit in wiring harness between hood latch switch terminal A and BCM terminal 3W BCM malfunction

Diagnostic Procedure

Step	Inspection		Action
1	VERIFY BCM DTCs AGAIN Clear the DTC for the BCM using the M-MDS. (See CLEARING DTC [BCM].) Retrieve the BCM DTCs using the M-MDS. (See DTC INSPECTION [BCM].) Is the same DTC displayed?	Yes	Go to the next step.
		No	Go to Step 8.
2	INSPECT HOOD LATCH SWITCH CONNECTOR CONDITION Switch the ignition off. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) Disconnect the hood latch switch connector. Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. Is the connector normal?	Yes	Go to the next step.
		No	Repair or replace the connector, then go to Step 7.
3	INSPECT HOOD LATCH SWITCH GROUND CIRCUIT FOR OPEN CIRCUIT Verify that the hood latch switch connector is disconnected. Inspect for continuity between hood latch switch terminal B (wiring harness-side) and body ground. Is there continuity?	Yes	Go to the next step.
		No	Refer to the wiring diagram and verify whether or not there is a common connector between hood latch switch terminal B and body ground. If there is a common connector: Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. Repair or replace the malfunctioning part. If there is no common connector: Repair or replace the wiring harness which has an open circuit. Go to Step 7.
4	INSPECT HOOD LATCH SWITCH Inspect the hood latch switch. (See HOOD LATCH SWITCH INSPECTION.) Is the hood latch switch normal?	Yes	Go to the next step.
		No	Replace the hood latch switch, then go to Step 7. (See HOOD LATCH REMOVAL/INSTALLATION.)
5	INSPECT BCM CONNECTOR CONDITION Disconnect the BCM connector. Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. Is the connector normal?	Yes	Go to the next step.
		No	Repair or replace the connector, then go to Step 7.
6	INSPECT HOOD LATCH SWITCH CIRCUIT FOR OPEN CIRCUIT Verify that the hood latch switch and BCM connectors are disconnected. Inspect for continuity between hood latch switch terminal A (wiring harness-side) and BCM terminal 3W (wiring harness-side). Is there continuity?	Yes	Go to the next step.
		No	Refer to the wiring diagram and verify whether or not there is a common connector between hood latch switch terminal A and BCM terminal 3W. If there is a common connector: Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. Repair or replace the malfunctioning part. If there is no common connector: Repair or replace the wiring harness which has an open circuit. Go to the next step.
7	VERIFY THAT REPAIRS HAVE BEEN COMPLETED Always reconnect all disconnected connectors. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) Clear the DTC for the BCM using the M-MDS. (See CLEARING DTC [BCM].) Retrieve the BCM DTCs using the M-MDS. (See DTC INSPECTION [BCM].) Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. If the malfunction recurs, replace the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) Go to the next step.
		No	Go to the next step.
8	VERIFY IF OTHER DTCs DISPLAYED Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [BCM].)
		No	DTC troubleshooting completed.
