WOOFER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
a. Scuff plate (passenger's side) (See SCUFF PLATE REMOVAL/INSTALLATION.)
b. Front side trim (passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
c. A-pillar trim (passenger's side) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
d. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
e. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)
f. Shift lever knob (MT)
g. Shift panel compartment (See SHIFT PANEL REMOVAL/INSTALLATION.)
h. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
i. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)
j. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
k. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)
l. Front console compartment (See FRONT CONSOLE REMOVAL/INSTALLATION.)
m. Front cup holder bracket (See FRONT CUP HOLDER BRACKET REMOVAL/INSTALLATION.)
n. Foot support (See FOOT SUPPORT REMOVAL/INSTALLATION.)

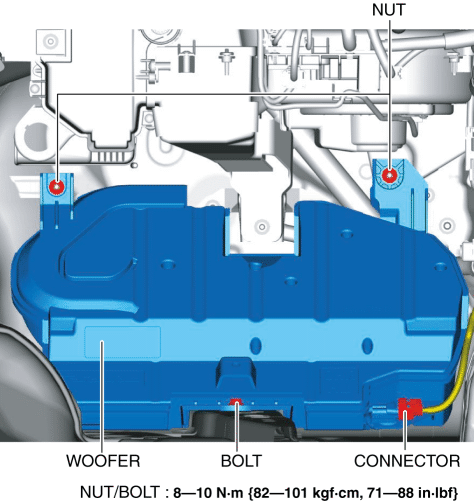

3. Disconnect the connector.

4. Remove the nuts.
5. Remove the bolt.
6. Remove the woofer.
7. Install in the reverse order of removal.
