INSTRUMENT CLUSTER REMOVAL/INSTALLATION

CAUTION:

  • If configuration is not performed when the instrument cluster is replaced with a new one, the vehicle specification information is not stored in the instrument cluster and the system will not operate normally.

  • When performing configuration, it is necessary to read the vehicle specification information from the instrument cluster before replacing it. Connect the M-MDS to the vehicle and perform vehicle identification before removing the instrument cluster. The vehicle specification information is temporarily stored in the M-MDS.

NOTE:

  • The instrument cluster prior to replacement stores the vehicle specification information.

  • A new instrument cluster does not store any vehicle specification information.

  • If the vehicle specification information from the instrument cluster prior to replacement cannot be read, perform the configuration using As-Built data.

1. When replacing the instrument cluster, perform the configuration. (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION).)

NOTE:

2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
3. Remove the following parts:
a. Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)
b. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
c. Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
d. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
e. Center panel No.2 (See CENTER PANEL No.2 REMOVAL/INSTALLATION.)
f. Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

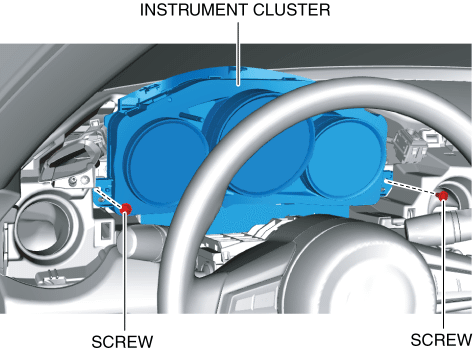

4. Remove the screws. (See Instrument cluster installation note.)

CAUTION:

  • When removing the instrument cluster, the instrument cluster may contact the light switch, wiper and washer switch, or the start stop unit and the instrument cluster may be scratched. When removing the instrument cluster, cover the light switch, wiper and washer switch, and start stop unit using a rag.

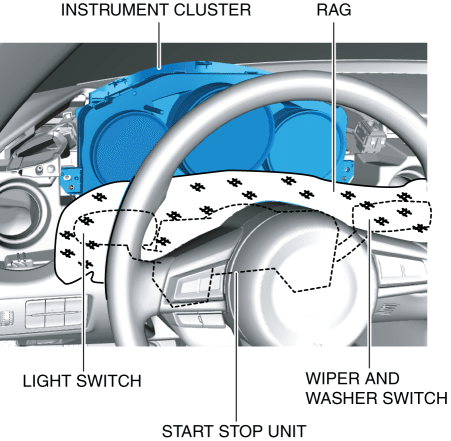

5. Cover the light switch, wiper and washer switch, and start stop unit using a rag.

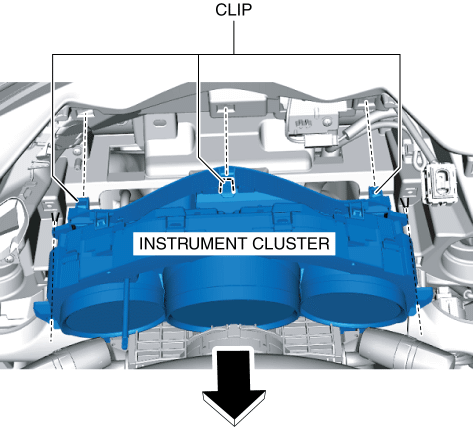

6. Pull the instrument cluster outward to detach the instrument cluster clip from the dashboard.

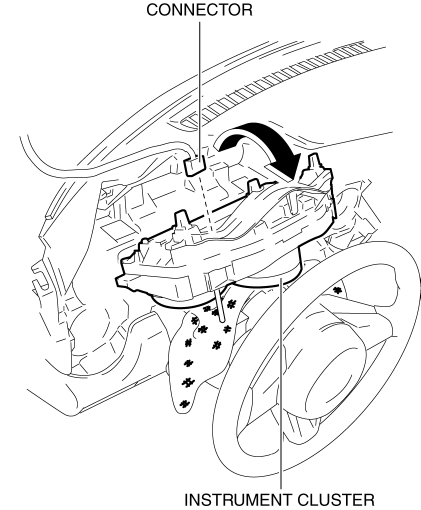

7. Tilt the instrument cluster in the direction of the arrow shown in the figure.

8. Disconnect the connector.
9. Lift up the instrument cluster.

CAUTION:

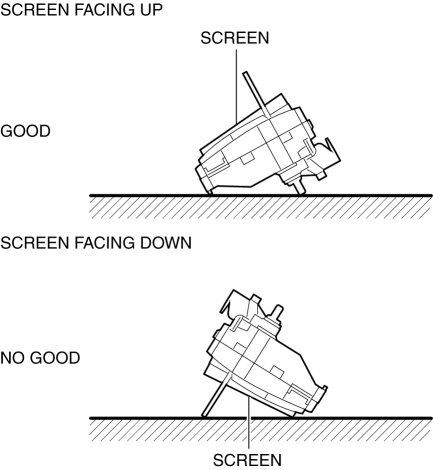

  • If the instrument cluster is left for a long time with its screen facing down, grease applied to the needles may spill and the needles may not operate smoothly. When storing the instrument cluster, store it with its screen facing upward.

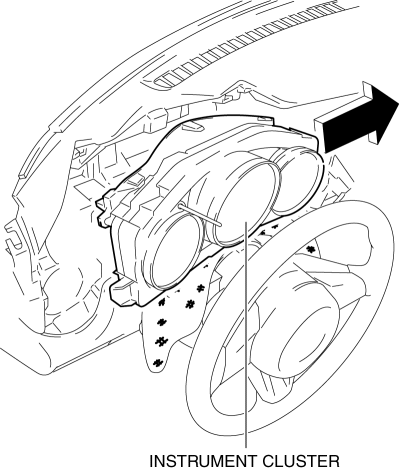

10. Remove the instrument cluster in the direction of the arrow shown in the figure.

11. Install in the reverse order of removal.

NOTE:

Instrument cluster installation note

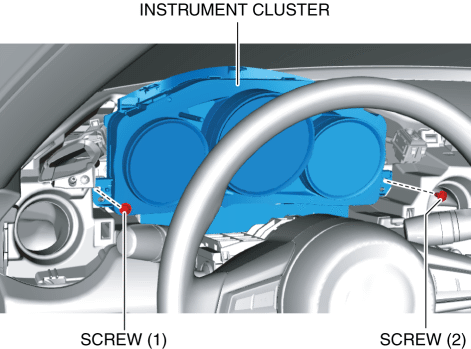

1. Install the screws in the order of (1) and (2).
