AIR SEAL COWL UP REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
a. Front bumper (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)
b. Front bumper slider (See FRONT BUMPER SLIDER REMOVAL/INSTALLATION.)
c. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
d. Crash zone sensor (See CRASH ZONE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See CRASH ZONE SENSOR REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)
e. Front bumper reinforcement (See FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION.)

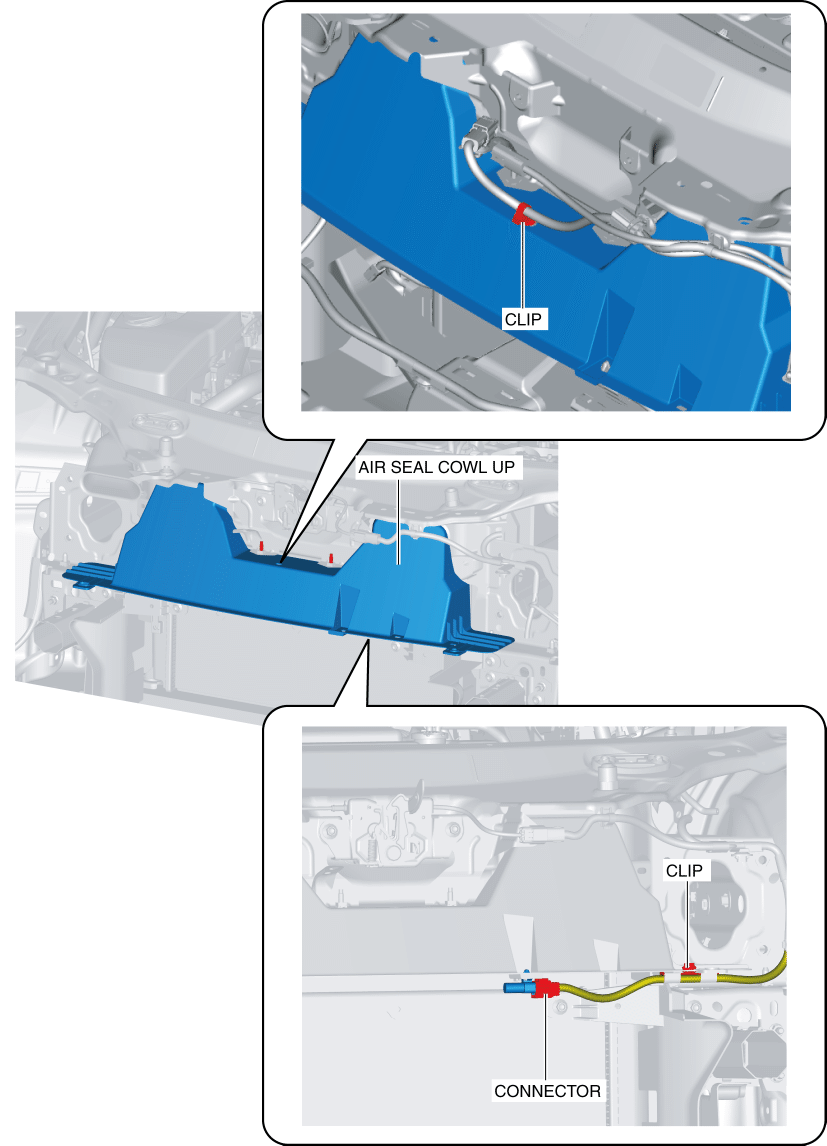

3. Disconnect the connector.

4. Remove the wiring harness clips.
5. Remove the screws.

6. Remove the air seal cowl up.
7. Install in the reverse order of removal.
