GPS ANTENNA FEEDER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
a. Scuff plate (passenger's side) (See SCUFF PLATE REMOVAL/INSTALLATION.)
b. Front side trim (passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
c. A-pillar trim (passenger's side) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
d. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
e. Center panel No.2 (See CENTER PANEL No.2 REMOVAL/INSTALLATION.)
f. Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
g. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
h. Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

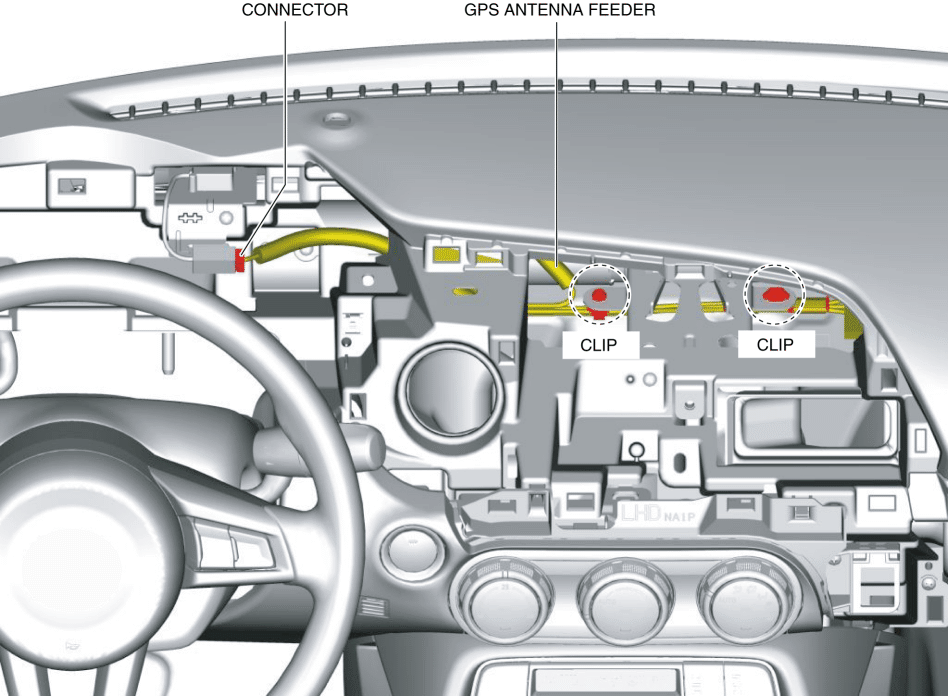

3. Disconnect the connector.

4. Remove clips in the position shown in the figure.
5. Remove the GPS antenna feeder.
6. Install in the reverse order of removal.
