HEADREST SPEAKER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
a. Seat (See SEAT REMOVAL/INSTALLATION.)
b. Seat side cover (See SEAT SIDE COVER REMOVAL/INSTALLATION.)
c. Buckle (See BUCKLE REMOVAL/INSTALLATION.)
d. Seat back component (See SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
e. Seat back trim (See SEAT BACK TRIM REMOVAL/INSTALLATION.)

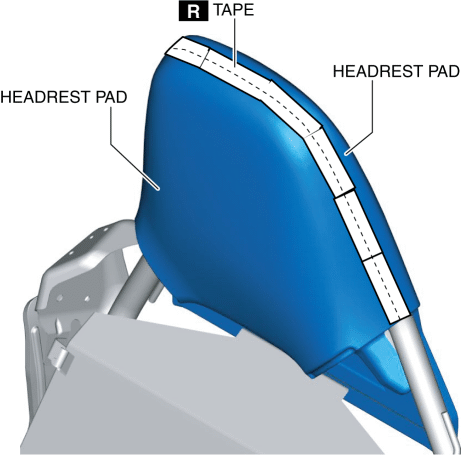

3. Peel off the tapes.

4. Remove the headrest pads.

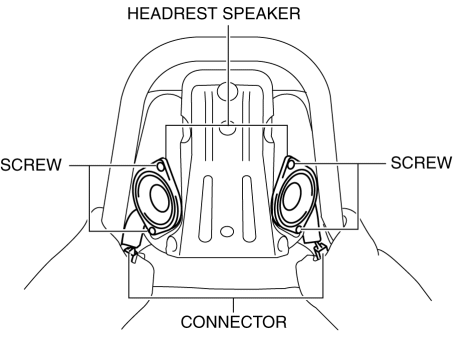

5. Disconnect the connectors.

6. Remove the screws.
7. Remove the headrest speakers.
8. Install in the reverse order of removal.
