INTAKE-AIR SYSTEM [SKYACTIV-G 2.0]

Structural View

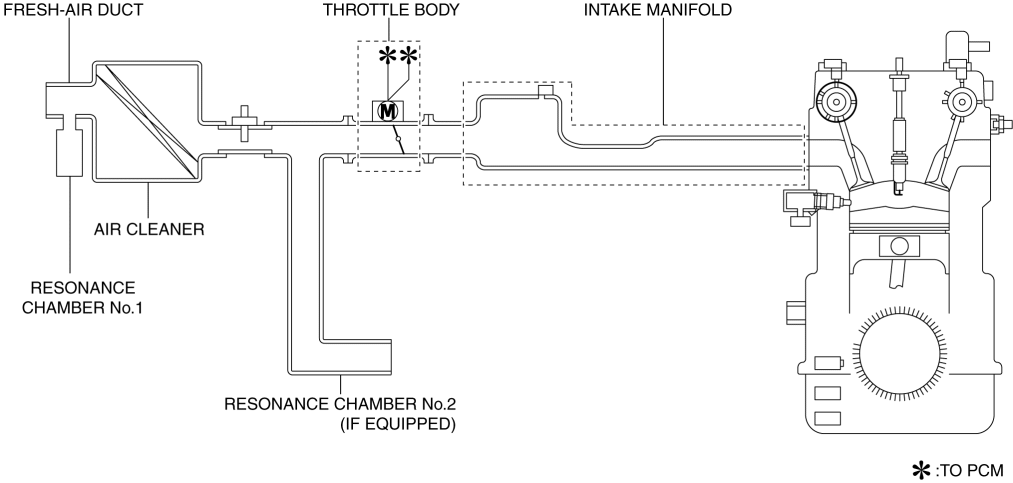

System Diagram

Vacuum Hose Routing Diagram

Structure

  • The intake air system consists of the following parts:

Part name

Reference

Fresh-air duct

(See FRESH-AIR DUCT [SKYACTIV-G 2.0].)

Resonance chamber No.1

(See RESONANCE CHAMBER [SKYACTIV-G 2.0].)

Resonance chamber No.2

(if equipped)

Air cleaner

(See AIR CLEANER [SKYACTIV-G 2.0].)

Throttle body

(See THROTTLE BODY [SKYACTIV-G 2.0].)

Intake manifold

(See INTAKE MANIFOLD [SKYACTIV-G 2.0].)

Accelerator pedal

(See ACCELERATOR PEDAL, KICKDOWN SWITCH [SKYACTIV-G 2.0].)

Vacuum hose

—
