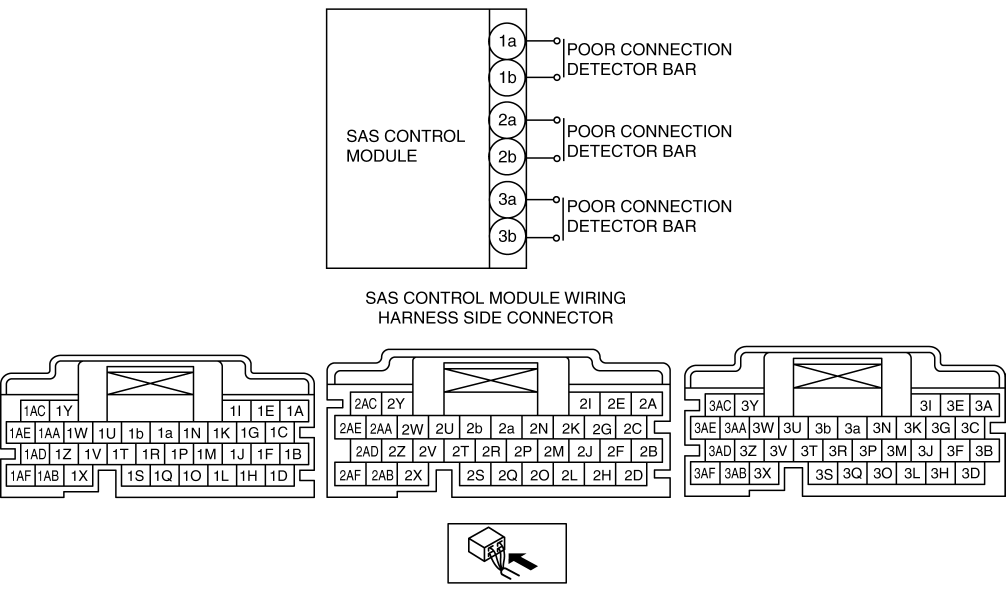

System malfunction location

• SAS control module connectors are poorly connected

Detection condition

WARNING:

• Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

• No continuity between poorly connected detector bar terminals of the SAS control module, or the measurement value is out of the normal range even though there is continuity

Fail-safe function

Not applicable

Possible cause

• SAS control module connectors are poorly connected

• SAS control module connector cover malfunction

• SAS control module connector malfunction

• SAS control module malfunction

Step

Inspection

Action

1

• Is the malfunction diagnosis performed using the flowchart? (See FLOWCHART [SAS CONTROL MODULE (STANDARD DEPLOYMENT CONTROL SYSTEM)].)

Yes

Go to the next step.

No

Re-perform the malfunction diagnosis using the flowchart. (See FOREWORD [SAS CONTROL MODULE (STANDARD DEPLOYMENT CONTROL SYSTEM)].)

2

WARNING:

• Handling the component parts improperly can accidentally operate (deploy) the air bag modules and pre-tensioner seat belts, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components.

  (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

• Switch the ignition off.

• Disconnect the negative battery cable and wait for 1 min or more.

  (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

• Remove the back trim.

  (See BACK TRIM REMOVAL/INSTALLATION.)

• Are all SAS control module connectors securely connected?

Yes

Go to the next step.

No

Reconnect the SAS control module connector properly, then go to Step 4.

3

• Remove the column cover.

  (See COLUMN COVER REMOVAL/INSTALLATION.)

• Disconnect the clock spring connector.

  (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

• Remove the passenger-side lower trim.

  (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

• Disconnect the passenger-side air bag module connector.

  (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

• Disconnect the driver and passenger-side seat connectors.

  (See SEAT REMOVAL/INSTALLATION.)

• Remove the tire house trim.

  (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

• Disconnect the driver and passenger-side pre-tensioner seat belt connectors.

  (See SEAT BELT REMOVAL/INSTALLATION.)

• Verify the condition of the detector bars of the SAS control module connectors. (Corrosion, damage, and disconnected pins)

• Are the detector bars of the SAS control module connectors normal?

Yes

Go to the next step.

No

Replace the air bag harness.

4

• Connect the SAS control module connectors.

• Reconnect all disconnected connectors.

• Connect the negative battery cable.

  (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

• Switch the ignition ON (engine off or on).

• Clear the DTC for the SAS control module using the M-MDS.

  (See CLEARING DTC [SAS CONTROL MODULE (STANDARD DEPLOYMENT CONTROL SYSTEM)].)

• Perform the DTC inspection for the SAS control module using the M-MDS.

  (See DTC INSPECTION [SAS CONTROL MODULE (STANDARD DEPLOYMENT CONTROL SYSTEM)].)

• Is the same DTC present?

Yes

Repeat the inspection from Step 1.

• If the malfunction recurs, replace the SAS control module.

  (See SAS CONTROL MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

No

DTC troubleshooting completed.
