MECHANICAL [SKYACTIV-G 2.0]
Outline
The following have been adopted to the SKYACTIV-G 2.0 to reduce sliding resistance *1.
Rocker arm (built in needle roller bearing)
Reducing the valve spring load
Narrowing down the crankshaft journal
Optimizing the piston skirt shape
Low-tension piston ring
Lowered tensioning of the drive belt
HLA has been adopted to achieve a maintenance-free design for valve clearance.
A piston cavity has been adopted to reduce cooling loss.
A variable valve timing mechanism has been adopted on both the intake side and the exhaust side to reduce pumping loss*2.
The rigidity and shape of the related parts have been optimized to stabilize the timing chain behavior and reduce sliding resistance.
A simple shaped aluminum-alloy cylinder head cover has been adopted.
- *1
- Resistance (friction force) which occurs when two object slide against each other. The larger the sliding resistance, the greater the energy loss.
- *2
- Energy loss which occurs from each type of resistance corresponding to intake and exhaust is called pumping loss.

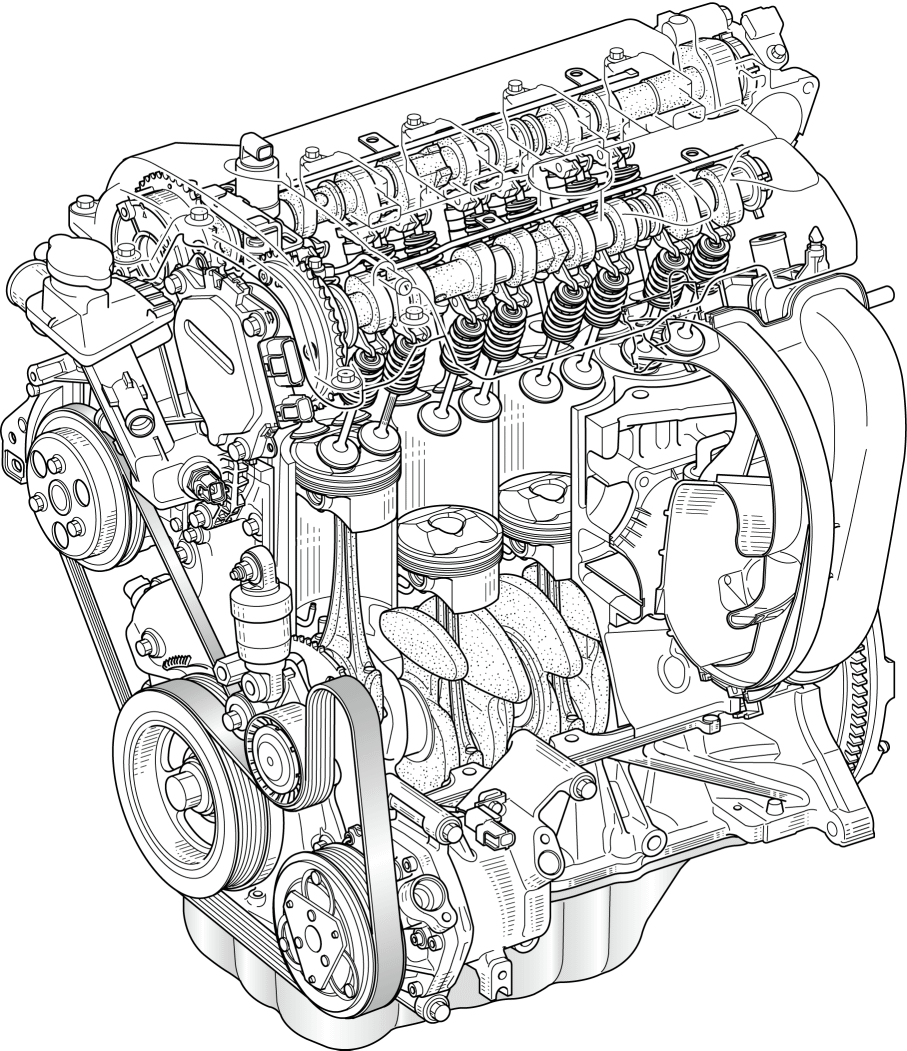

Structural View
Structure
Consists of the following parts:
| Cylinder head cover |
||
| Cylinder head |
||
| Cylinder head gasket |
||
| Cylinder block |
||
| Crankshaft |
||
| Piston |
||
| Connecting rod |
(See CONNECTING ROD, CONNECTING ROD BEARING [SKYACTIV-G 2.0].) |
|
| Engine front cover |
||
| Crankshaft pulley |
||
| Drive belt |
(See DRIVE BELT [SKYACTIV-G 2.0].) |
|
| Valve mechanism |
Valve |
(See VALVE, VALVE SPRING, VALVE SEAL, VALVE GUIDE [SKYACTIV-G 2.0].) |
| HLA |
||
| Camshaft |
(See CAMSHAFT [SKYACTIV-G 2.0].) |
|
| Timing chain |
||
| Variable valve timing mechanism |
OCV |
|
| Hydraulic variable valve timing actuator |
(See HYDRAULIC VARIABLE VALVE TIMING ACTUATOR [SKYACTIV-G 2.0].) |
|
| Electric variable valve timing actuator |
(See ELECTRIC VARIABLE VALVE TIMING ACTUATOR [SKYACTIV-G 2.0].) |
|
| Electric variable valve timing relay |
(See ELECTRIC VARIABLE VALVE TIMING RELAY [SKYACTIV-G 2.0].) |
|
| Engine mount |
||
