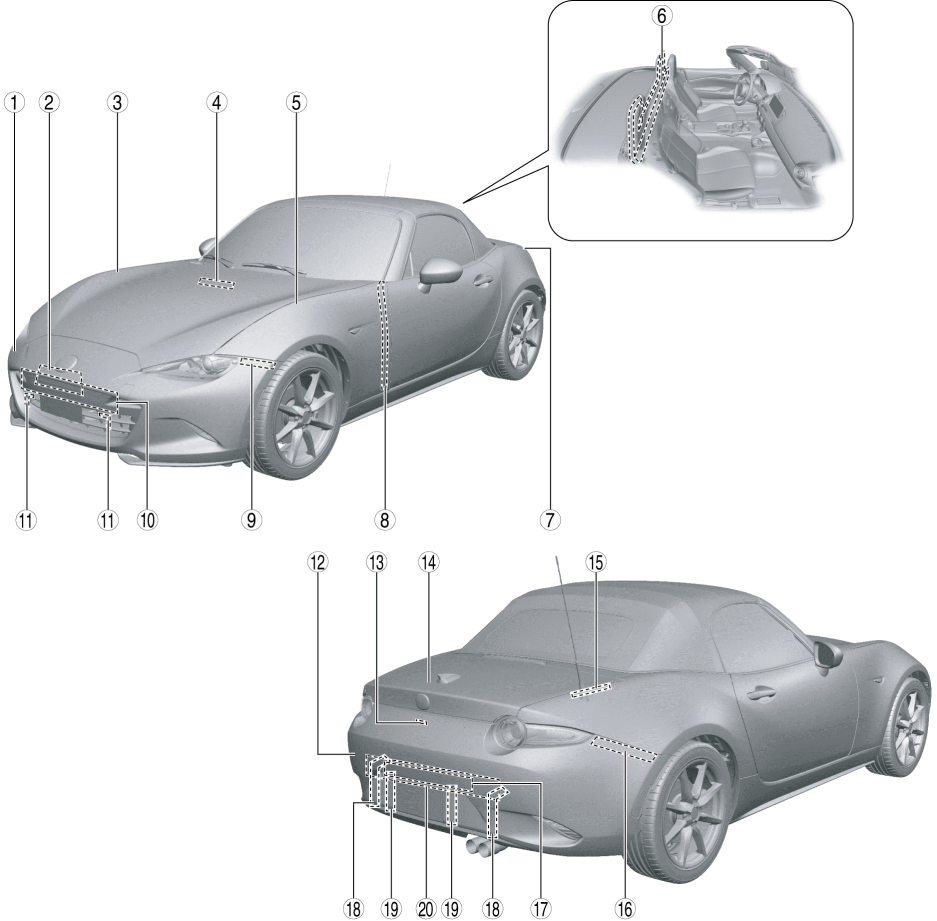

BODY PANELS LOCATION INDEX

1

Front bumper

(See FRONT BUMPER REMOVAL.)

(See FRONT BUMPER INSTALLATION.)

(See FRONT BUMPER DISASSEMBLY/ASSEMBLY.)

2

Air seal cowl up

(See AIR SEAL COWL UP REMOVAL/INSTALLATION.)

3

Hood

(See HOOD REMOVAL/INSTALLATION.)

(See HOOD DISASSEMBLY/ASSEMBLY.)

(See HOOD ADJUSTMENT.)

4

Air box complete

(See AIR BOX COMPLETE REMOVAL/INSTALLATION.)

5

Front fender panel

(See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

6

Seat back crossmember assembly

(See SEAT BACK CROSSMEMBER ASSEMBLY REMOVAL/INSTALLATION.)

7

Fuel-filler lid

(See FUEL-FILLER LID REMOVAL/INSTALLATION.)

(See FUEL-FILLER LID ADJUSTMENT.)

8

Front fender insulator

(See FRONT FENDER INSULATOR REMOVAL/INSTALLATION.)

9

Front bumper slider

(See FRONT BUMPER SLIDER REMOVAL/INSTALLATION.)

10

Front bumper reinforcement

(See FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION.)

11

Seal plate

(See SEAL PLATE REMOVAL/INSTALLATION.)

12

Rear bumper

(See REAR BUMPER REMOVAL.)

(See REAR BUMPER INSTALLATION.)

(See REAR BUMPER DISASSEMBLY/ASSEMBLY.)

13

Rear bumper bracket

(See REAR BUMPER BRACKET REMOVAL/INSTALLATION.)

14

Trunk lid

(See TRUNK LID REMOVAL/INSTALLATION.)

(See TRUNK LID ADJUSTMENT.)

15

Stay damper

(See TRUNK LID REMOVAL/INSTALLATION.)

(See STAY DAMPER DISPOSAL.)

16

Rear bumper slider

(See REAR BUMPER SLIDER REMOVAL/INSTALLATION.)

17

Energy-absorbing form

(See ENERGY-ABSORBING FORM REMOVAL/INSTALLATION.)

18

Rear bumper stay

(See REAR BUMPER STAY REMOVAL/INSTALLATION.)

19

Rear bumper retainer no.1

(See REAR BUMPER RETAINER No.1 REMOVAL/INSTALLATION.)

20

Rear bumper reinforcement

(See REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION.)
