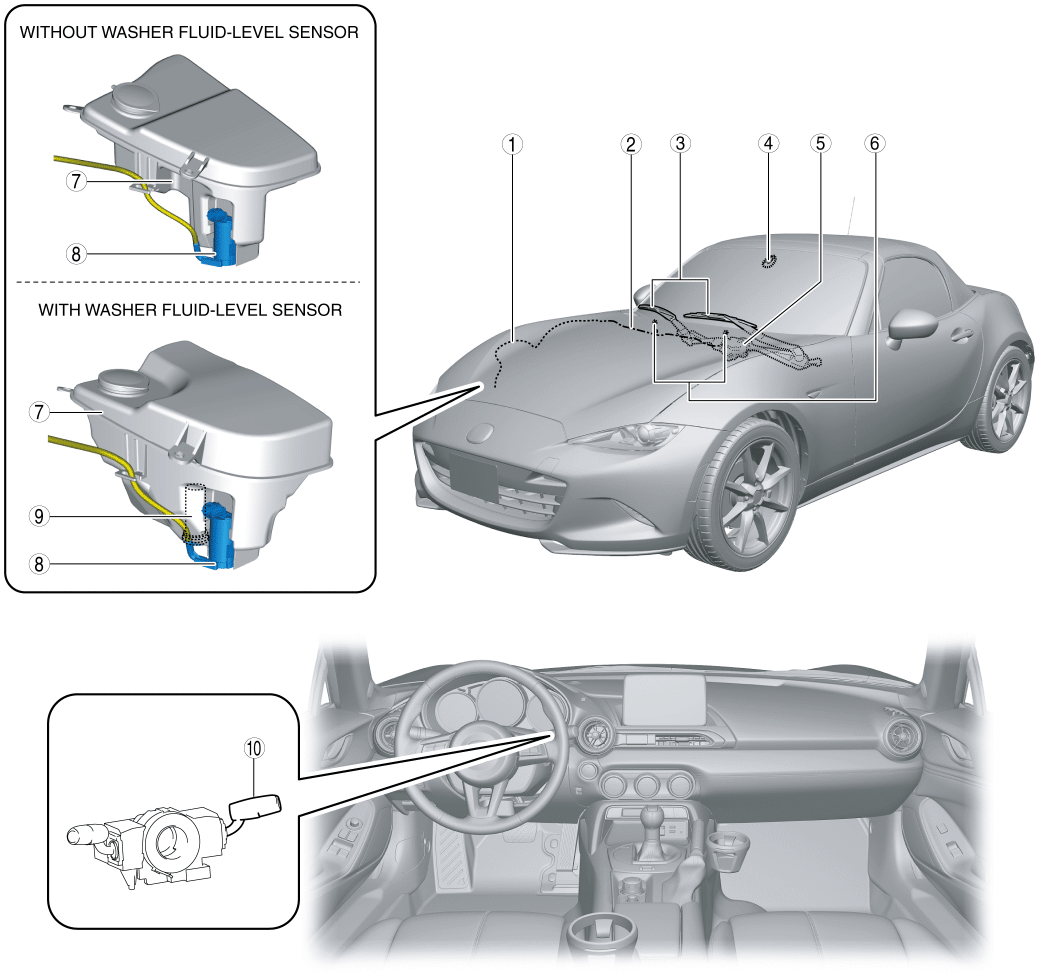

WIPER/WASHER SYSTEM LOCATION INDEX

1

Washer hose A

(See WASHER HOSE REMOVAL/INSTALLATION.)

2

Washer hose B

(See WASHER HOSE REMOVAL/INSTALLATION.)

3

Wiper arm and blade

(See WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(See WIPER ARM AND BLADE ADJUSTMENT.)

4

Rain sensor (with auto wiper system)

(See RAIN SENSOR REMOVAL/INSTALLATION.)

(See RAIN SENSOR INITIALIZATION SETTING.)

(See WIPER/WASHER PERSONALIZATION FEATURES SETTING PROCEDURE.)

5

Wiper motor and link

(See WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

(See WIPER MOTOR INSPECTION.)

6

Washer nozzle

(See WASHER NOZZLE REMOVAL/INSTALLATION.)

(See WASHER NOZZLE ADJUSTMENT.)

7

Washer tank

(See WASHER TANK REMOVAL/INSTALLATION.)

8

Washer motor

(See WASHER MOTOR REMOVAL/INSTALLATION.)

(See WASHER MOTOR INSPECTION.)

9

Washer fluid-level sensor (with washer fluid-level sensor)

(See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION.)

(See WASHER FLUID-LEVEL SENSOR INSPECTION.)

10

Wiper and washer switch

(See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

(See WIPER AND WASHER SWITCH INSPECTION.)
