ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2. Remove the following parts:

a. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

b. Shift lever knob (MT)

c. Shift panel compartment (See SHIFT PANEL REMOVAL/INSTALLATION.)

d. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

e. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

f. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

g. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)

h. Front console compartment (See FRONT CONSOLE REMOVAL/INSTALLATION.)

i. Front cup holder bracket (See FRONT CUP HOLDER BRACKET REMOVAL/INSTALLATION.)

j. Seat (RH) (See SEAT REMOVAL/INSTALLATION.)

k. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

l. Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

m. Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

n. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

o. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

p. Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION.)

q. Roof hook lever (See ROOF HOOK REMOVAL/INSTALLATION.)

r. Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

s. Side shelf (RH) (See SIDE SHELF REMOVAL/INSTALLATION.)

t. Audio amplifier (with Bose ^®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)

u. Audio amplifier bracket (with Bose ^®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)

v. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

w. Partition board (See PARTITION BOARD REMOVAL/INSTALLATION.)

x. Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

y. Lap pre-tensioner seat belt cover (with lap pre-tensioner seat belt) (RH) (See SEAT BELT REMOVAL/INSTALLATION.)

z. Lower anchor installation bolt on the seat belt (RH) (See SEAT BELT REMOVAL/INSTALLATION.)

aa. Passenger-side floor covering No.1 (See FLOOR COVERING REMOVAL/INSTALLATION.)

ab. Passenger-side floor covering No.2 (See FLOOR COVERING REMOVAL/INSTALLATION.)

3. Perform the following procedure for vehicles with the center display.

a. Remove the A-pillar trim. (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

b. Remove the passenger-side lower panel. (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

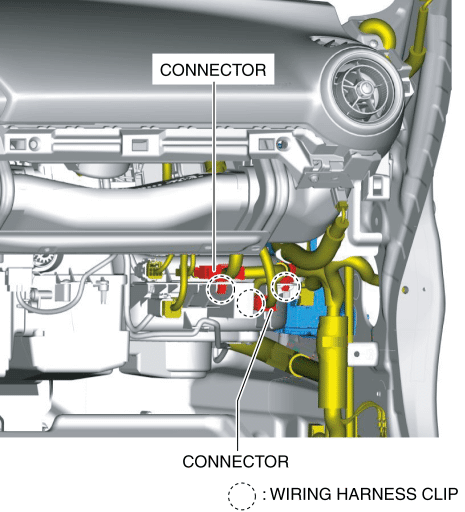

c. Disconnect the connectors.

d. Pull out the wiring harness clips.

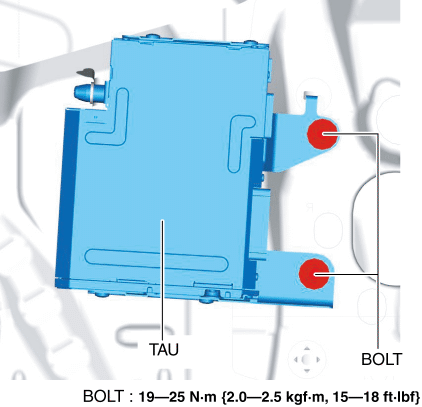

e. Remove the bolts.

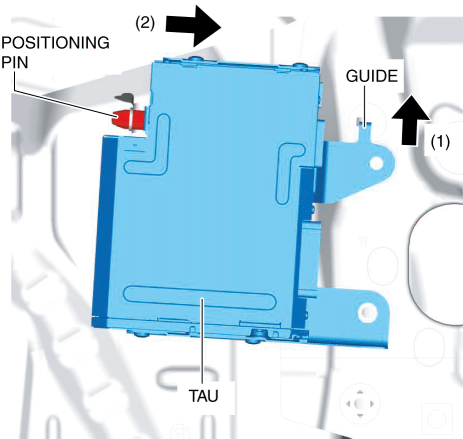

f. Move the tuner and amplifier unit (TAU) in the direction of arrow (1) shown in the figure and detach the guide from the body.

g. Move the tuner and amplifier unit (TAU) in the direction of arrow (2) shown in the figure and detach the positioning pin from the body.

h. Move the tuner and amplifier unit (TAU) to the position where the antenna feeder No.2 connectors can be disconnected.

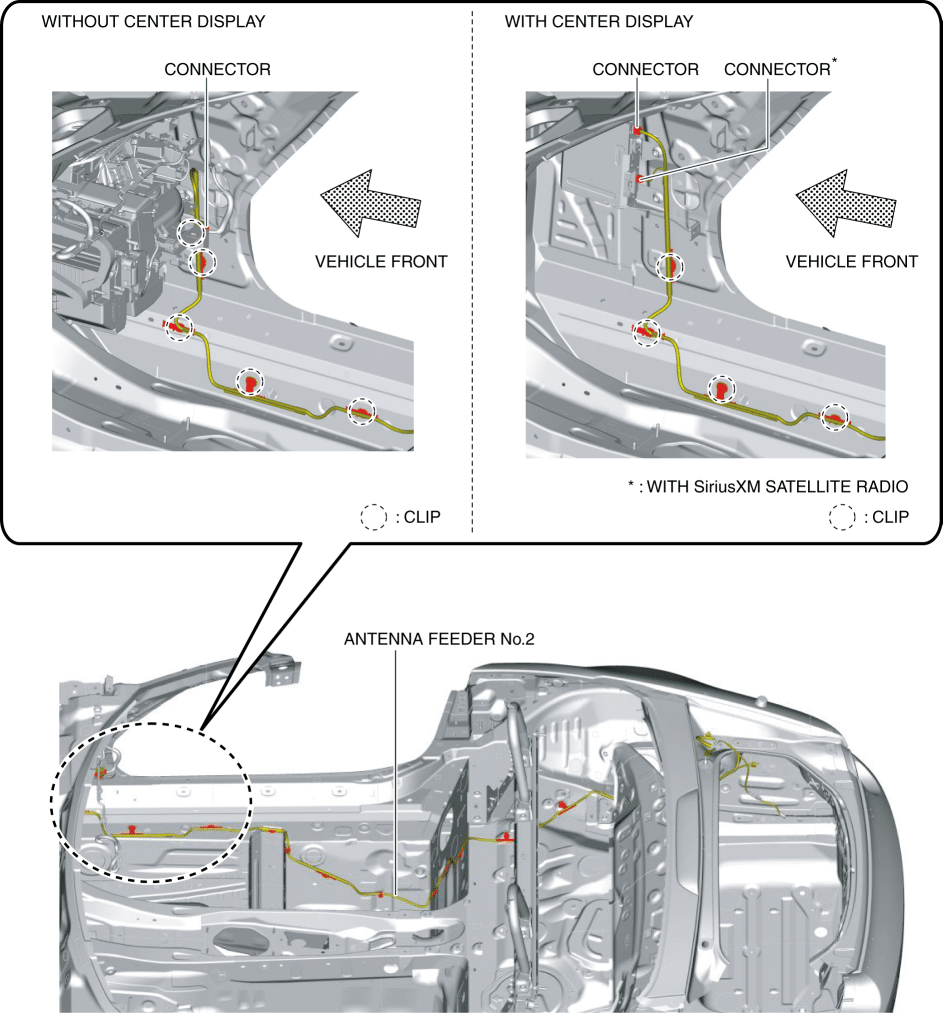

4. Disconnect the connectors.

5. Remove clips in the position shown in the figure.

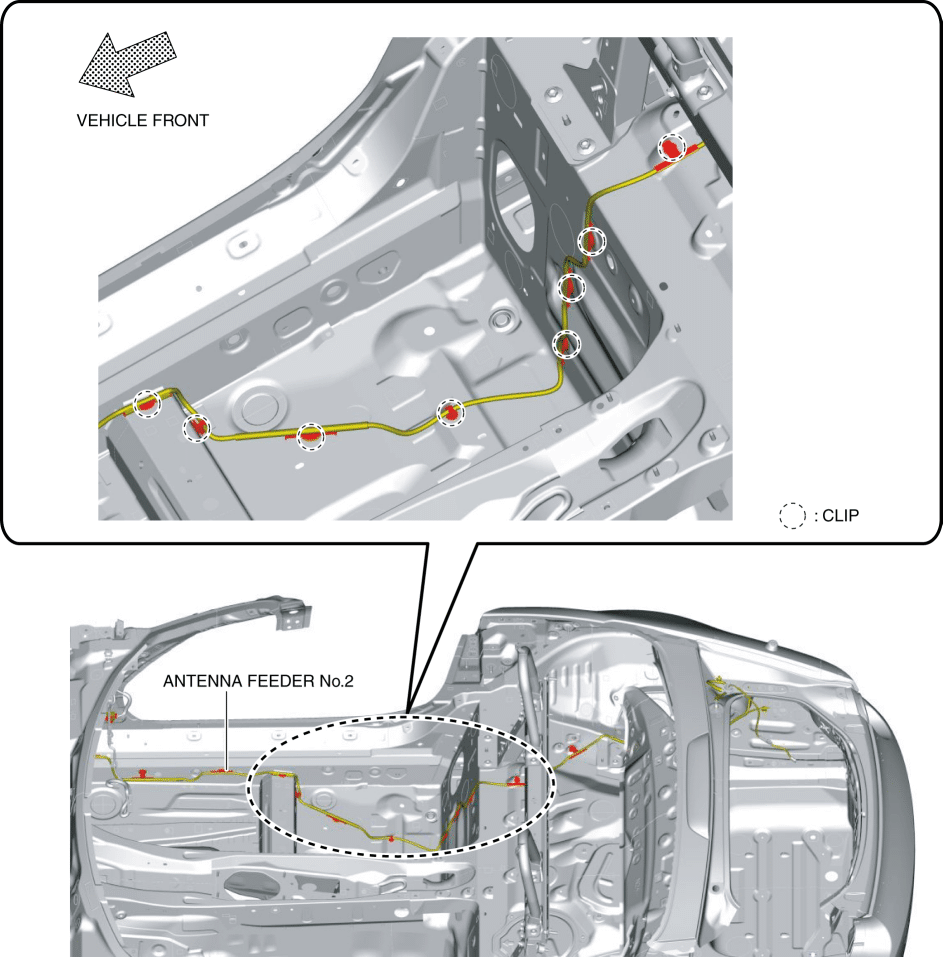

6. Remove clips in the position shown in the figure.

7. Remove clips in the position shown in the figure.

8. Disconnect the connector.

9. Remove antenna feeder No.2.

10. Install in the reverse order of removal.
