Part/System name

Reference

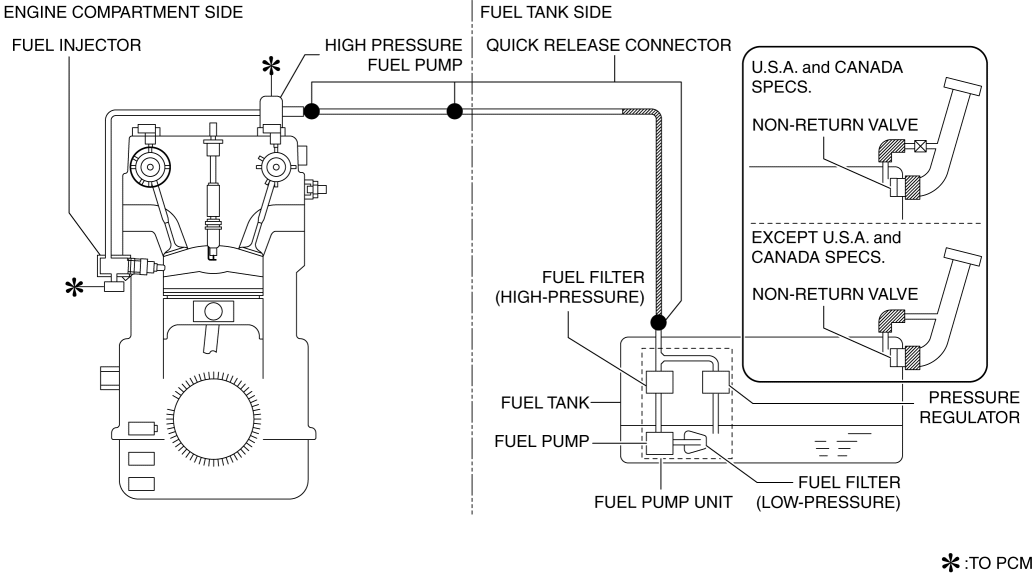

Returnless fuel system

(See RETURNLESS FUEL SYSTEM [SKYACTIV-G 2.0].)

Fuel pump unit

(See FUEL PUMP UNIT [SKYACTIV-G 2.0].)

Direct fuel injection system

(See DIRECT FUEL INJECTION SYSTEM [SKYACTIV-G 2.0].)

High pressure fuel pump

(See HIGH PRESSURE FUEL PUMP [SKYACTIV-G 2.0].)

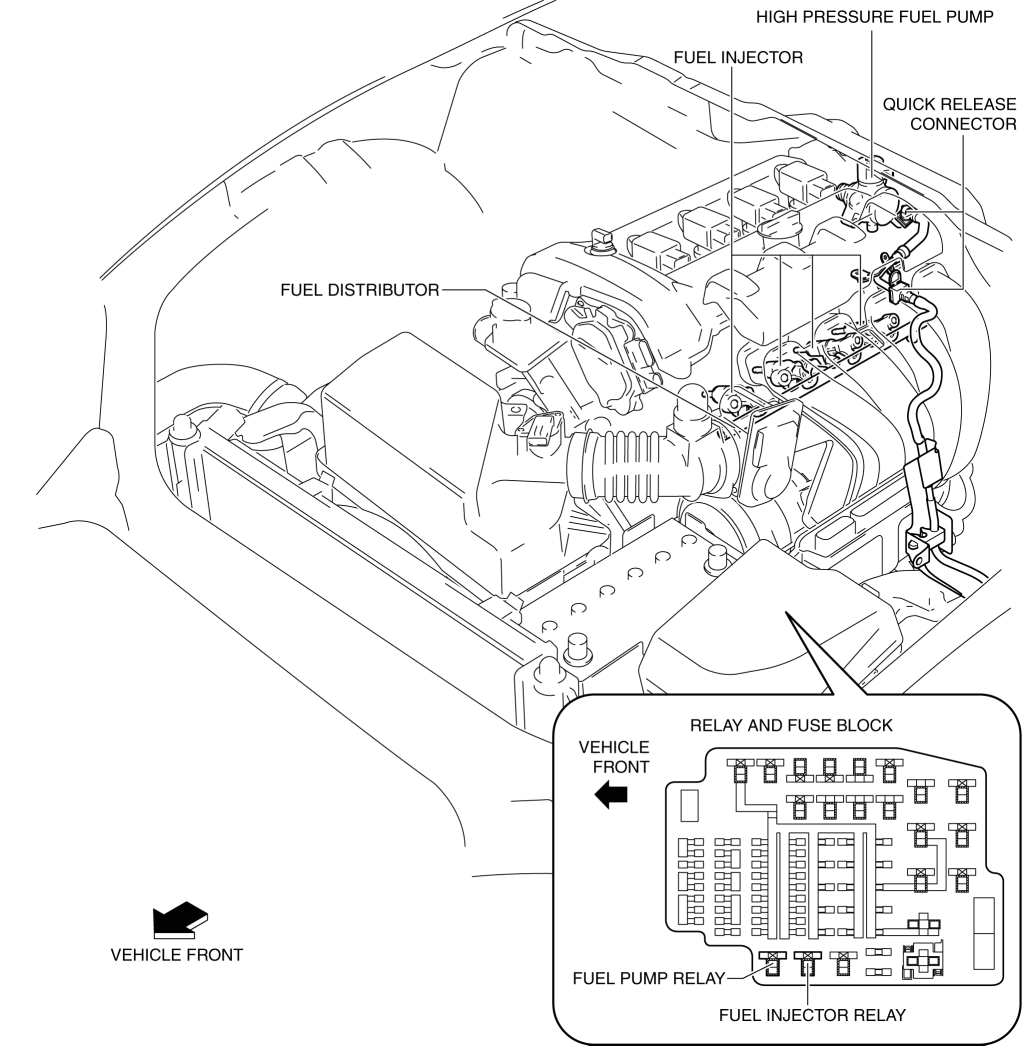

Fuel distributor

(See FUEL DISTRIBUTOR [SKYACTIV-G 2.0].)

Fuel injector

(See FUEL INJECTOR [SKYACTIV-G 2.0].)

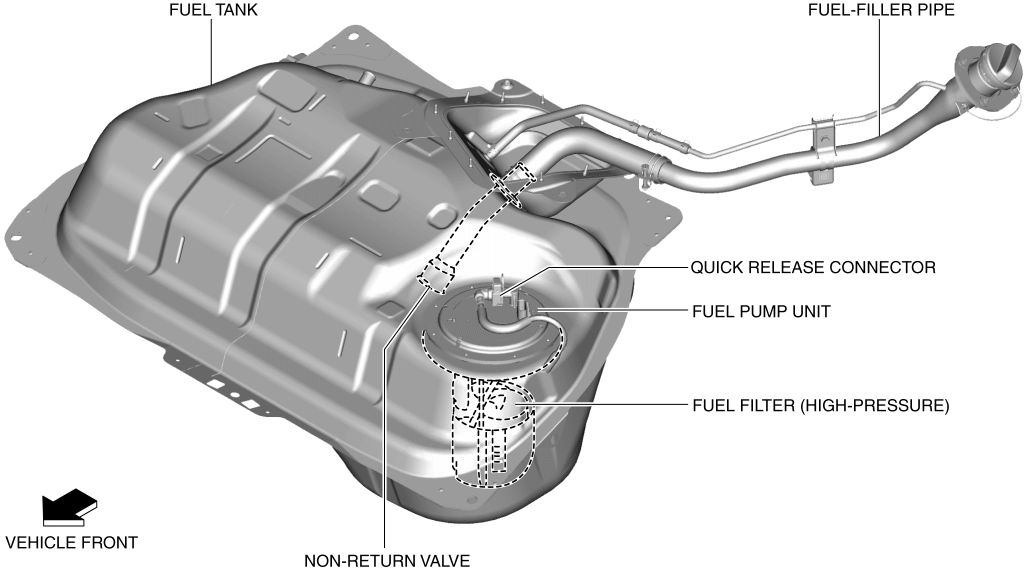

Fuel tank

(See FUEL TANK [SKYACTIV-G 2.0].)

Non-return valve

(See NON-RETURN VALVE [SKYACTIV-G 2.0].)

Fuel pump relay

(See FUEL PUMP RELAY [SKYACTIV-G 2.0].)

Fuel injector relay

(See FUEL INJECTOR RELAY [SKYACTIV-G 2.0].)

Quick release connector (fuel system)

(See QUICK RELEASE (FUEL SYSTEM) CONNECTOR [SKYACTIV-G 2.0].)

Item

Specification

Fuel injector

Type

High resistance

Fuel supply method

Top-feed

Drive types

Electronic

Pressure regulator control pressure

(kPa {kgf/cm², psi})

• Approx. 450 {4.59, 65.3}

Fuel pump type

Electric

Fuel tank capacity

(L {US gal, Imp gal})

45.0 {11.9, 9.90}

Fuel

Octane Rating* (Anti-knock index)

Premium unleaded fuel

91 [(R+M)/2 method] or above (96 RON or above)
